LUCKY Portable Sonar Fish Finder Wholesale

Product Overview

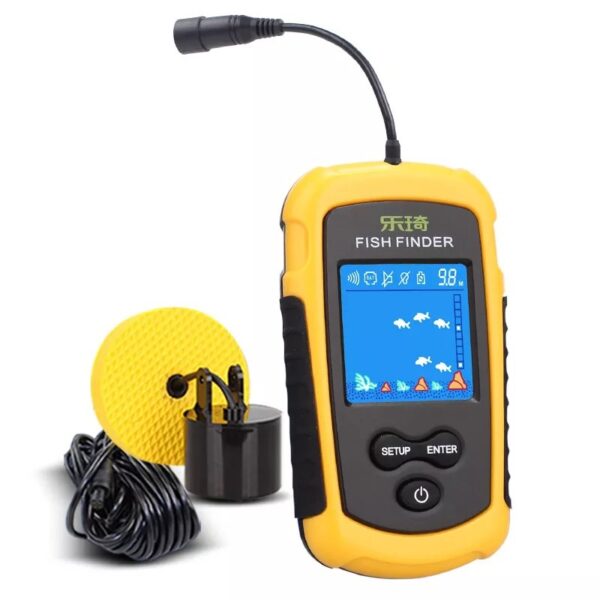

The FFC1108-1 Portable Sonar Fish Finder is a compact, handheld depth finder designed for recreational and light-commercial fishing applications. Featuring a 2-inch TN anti-UV LCD display with blue LED backlighting, this portable sonar fish finder delivers accurate real-time data on water depth, fish location, and bottom structure at a detection range of 3 ft to 328 ft (0.6 m to 100 m).

Powered by 4 × AAA batteries (not included) with up to 8 hours of continuous operation, the unit is built for anglers who demand portability without sacrificing performance. The 200 kHz transducer with a 45-degree beam angle ensures reliable sonar coverage in both freshwater and saltwater environments, making it an ideal resale product for fishing tackle wholesalers, outdoor gear distributors, marine supply retailers, and seasonal gift suppliers.

Key Features

Accurate Sonar Detection

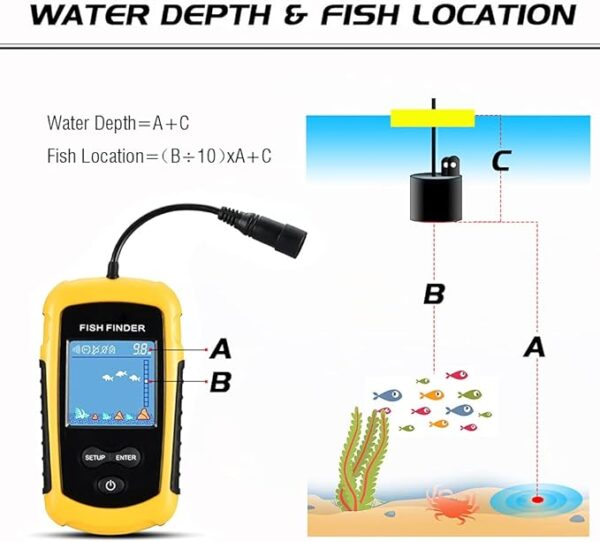

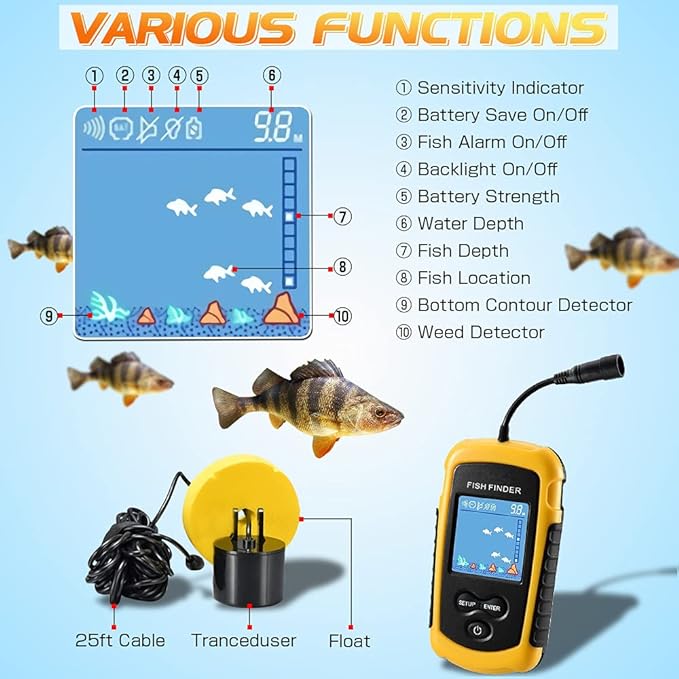

This portable sonar fish finder detects water depth from 0.6 m to 100 m and displays approximate fish location, fish depth, and bottom contour. The 200 kHz transducer sensor delivers consistent performance in clear or turbid water conditions.

2-Inch Anti-UV LCD with Backlight

The 2-inch TN LCD screen features blue LED backlighting and anti-UV coating, ensuring readable data in direct sunlight or nighttime fishing sessions. Measurement units switch easily between feet and meters.

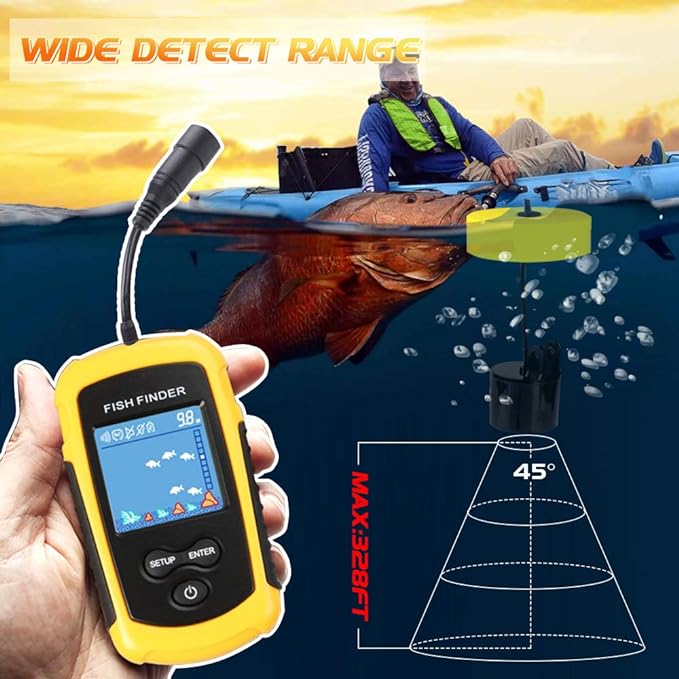

45-Degree Beam Angle Transducer

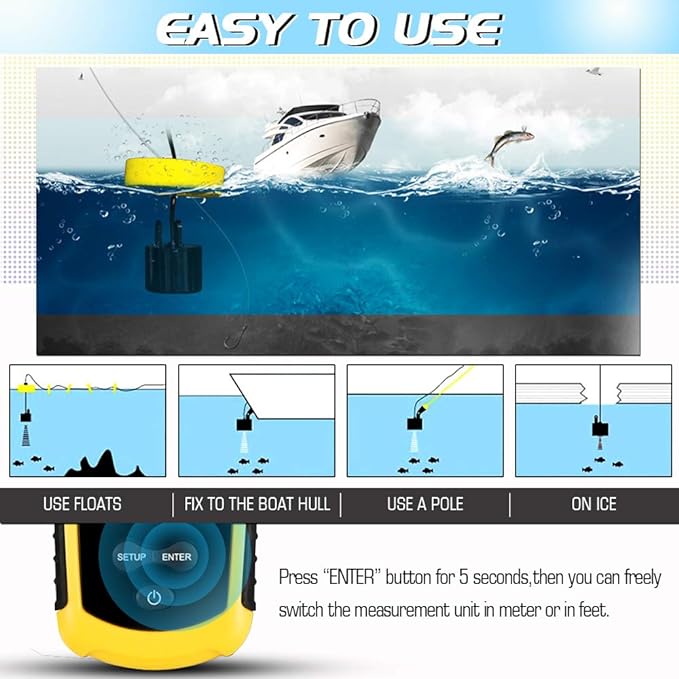

The 1.81-inch diameter transducer sensor provides a 45-degree coverage cone at 200 kHz, delivering a wide detection area under the boat, kayak, or ice hole. The 25 ft (7.62 m) cable allows flexible mounting on hulls, transoms, or handheld casting.

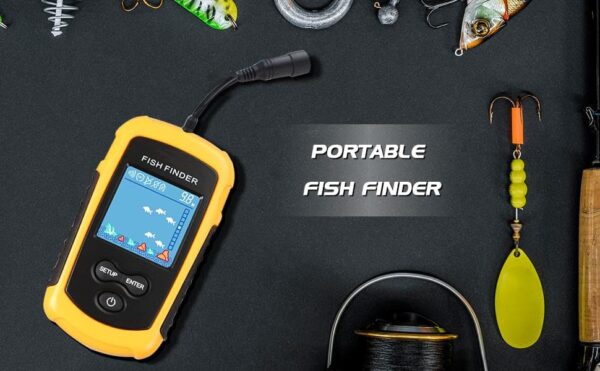

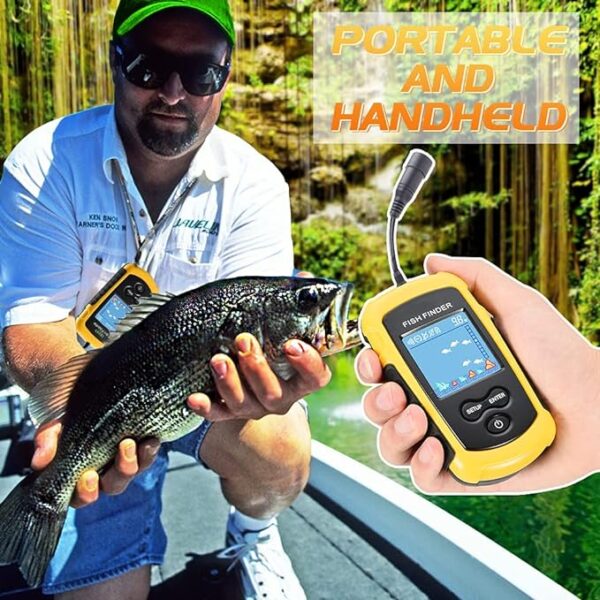

Portable Handheld Design

Measuring just 2.68 × 1.18 × 4.8 inches and weighing 1.28 lbs, this handheld fish finder fits in a pocket or hangs comfortably around the neck. No complex installation — cast the transducer or mount it to the hull and start fishing immediately.

Fish Alarm & Sensitivity Control

Built-in fish alarm alerts anglers when fish or fish schools pass through the sonar cone. Five-level sensitivity adjustment adapts the portable sonar fish finder to different water clarities, from crystal-clear lakes to turbid rivers.

Battery Save Mode

Activate battery save mode to extend runtime to 4–5+ hours on a fresh set of AAA batteries, ensuring full-day fishing trips without power anxiety.

Versatile Fishing Applications

Suitable for ice fishing, kayak fishing, boat fishing, shore fishing, dock fishing, and freshwater or saltwater environments. The transducer can even be placed on smooth ice to locate fish before drilling holes.

Technical Specifications

Table

Parameter	Details
Product Model	FFC1108-1
Product Type	Portable sonar fish finder / handheld depth finder
Display	2-inch TN LCD, anti-UV coating
Backlight	Blue LED backlight
Depth Range	3 ft – 328 ft (0.6 m – 100 m)
Transducer Frequency	200 kHz
Beam Angle	45 degrees
Transducer Diameter	1.81 inches
Transducer Cable Length	25 ft (7.62 m)
Power Source	4 × AAA batteries (not included)
Battery Life	Up to 8 hours (standard mode); 4–5+ hours (battery save mode)
Product Weight	1.28 lbs (approx. 580 g)

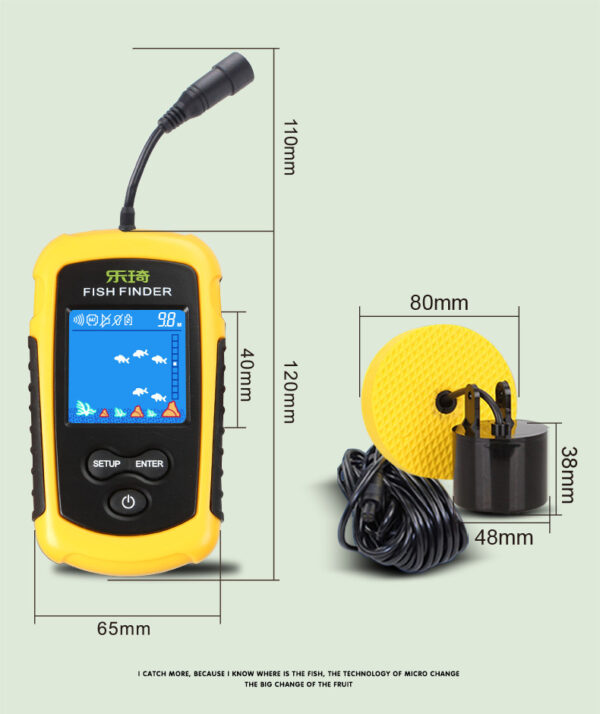

Product Dimensions	2.68 × 1.18 × 4.8 inches
Measurement Units	Feet (FT) / Meter (M), switchable
Operating Temperature	14°F – 122°F (-10°C – 50°C)
Alarm Function	Fish alarm (audible)
Sensitivity Levels	5 adjustable levels
Applications	Kayak, boat, ice, shore, dock, freshwater & saltwater fishing

Target Applications

Table

Application	Use Case
Kayak Fishing	Mount transducer to kayak hull or cast overboard; handheld display fits in cockpit
Boat Fishing	Attach transducer to transom or hull; monitor depth and fish arches in real time
Ice Fishing	Place transducer on smooth ice to locate fish before drilling; prevents dry holes
Shore & Dock Fishing	Cast transducer into water from shore or dock; track depth and fish proximity
Freshwater Lakes & Rivers	Detect bottom structure, weeds, sand, and rocks to identify productive fishing zones
Saltwater Inshore	Suitable for bay, estuary, and nearshore fishing with proper freshwater rinse after use
Seasonal Gift Retail	Compact size and affordable price point make it a popular gift item for Father’s Day, Christmas, and birthdays

Packaging & Shipping Information

Single Unit Packaging

Inner Pack: Color box with foam insert + user manual
Box Contents: Handheld fish finder unit, 200 kHz transducer with 25 ft cable, neck strap, user manual
Unit Gross Weight: 650g (with packaging)

Master Carton

Quantity per Carton: 50 pcs
Carton Dimensions: 58 × 42 × 35 cm
Carton Gross Weight: 34 kg
Carton Net Weight: 31 kg

Container Loading Reference

20GP: Approx. 24,000 pcs
40HQ: Approx. 58,000 pcs

Custom retail packaging, multilingual user manuals, and barcode labels available for qualifying orders.

Wholesale Pricing & Order Terms

Table

Order Tier	Quantity	Notes
Sample Order	1–10 pcs	Evaluation units for quality and function testing
Small Batch	100–499 pcs	Standard color box, mixed orders supported
Medium Batch	500–1,999 pcs	Best for regional distributors and tackle shop chains
Bulk Order	2,000+ pcs	Lowest unit pricing, full customization support

Order Terms

MOQ: 100 pcs per order
Sample Lead Time: 3–5 business days
Production Lead Time: 15–25 days after order confirmation
Payment Terms: T/T 30% deposit, 70% balance before shipment; L/C accepted for orders above $10,000
Shipping: EXW, FOB Shenzhen, or DDP by express / air / sea freight

OEM & Customization Services

Table

Service	Details	MOQ
OEM Logo	Screen printing or sticker logo on handheld unit housing	500 pcs
Custom Color	Housing color customization (black, blue, green, camo, etc.)	1,000 pcs
Custom Packaging	Color box design, blister card, hang tag, multilingual insert	500 pcs
Private Label	Full brand packaging with your logo, UPC, and manual	1,000 pcs
Bundle Kits	Custom combos with transducer mounts, carrying cases, or extra cables	1,000 pcs

Sample & NRE Policy:

Custom sample development: 7–10 days
Sample fee applies for OEM designs (refundable against bulk order)
Defective product rate target: ≤ 2%

Certifications & Compliance

Table

Certification	Status
CE	✓ Compliant
RoHS	✓ Compliant
FCC	✓ Compliant (for export to USA)
IP Rating	IPX4 splash-resistant handheld unit

Full certificates provided to verified wholesale buyers upon request.

Why Choose XSikes as Your Portable Sonar Fish Finder Supplier

10+ years in marine electronics and fishing accessory manufacturing
In-house product testing for sonar accuracy, waterproofing, and battery performance
Monthly capacity: 50,000+ fish finder units
Exporting to 30+ countries across North America, Europe, Japan, and Southeast Asia
Flexible logistics: DHL/FedEx/UPS express, air freight, and FCL/LCL sea freight
Dedicated B2B support for distributors, Amazon sellers, and retail chains

Frequently Asked Questions (FAQ)

What is the maximum depth this portable sonar fish finder can detect? The FFC1108-1 detects depths from 0.6 m (3 ft) up to 100 m (328 ft) when the transducer is fully submerged.

What batteries does it use? The unit requires 4 × AAA batteries (not included). Battery life is up to 8 hours in standard mode.

Can this fish finder be used for ice fishing? Yes. Place the transducer on smooth ice to scan for fish before drilling holes, or submerge it directly in the ice hole.

Is it suitable for saltwater? Yes, the portable sonar fish finder works in both freshwater and saltwater. Rinse the transducer with fresh water after saltwater use to extend service life.

Can I mount it on a kayak? Yes. The transducer can be mounted on the kayak hull or simply cast overboard with the 25 ft cable.

Does it show fish size? The display shows fish icons and approximate fish depth. It does not provide exact fish size or species identification.

What is the warranty? 12 months from date of delivery against manufacturing defects.

How do I request a sample or bulk quotation? Send us your required quantity, destination country, and packaging requirements via WhatsApp or our quotation form.
