Disposable LED Underwater Fishing Light for Commercial Deep Drop Fishing
The SIKES XC188 Disposable LED Underwater Fishing Light is developed for deep drop fishing, longline fishing and other commercial fishing applications where compact size, long operating time and reliable underwater visibility are required.The light features four LEDs positioned at the top, bottom and both sides of the housing. This layout creates wide, approximately 360-degree light distribution, helping the light remain visible from multiple directions underwater.Its built-in 3.7V 3000mAh disposable lithium battery eliminates the need to open the housing or replace batteries during use. The light automatically activates when it comes into contact with water and turns off after it is removed and dried.The XC188 has been customer-tested at a depth of 1,000 meters and is suitable for demanding freshwater and saltwater fishing environments.
Key Features of the XC188 Underwater Fishing Light

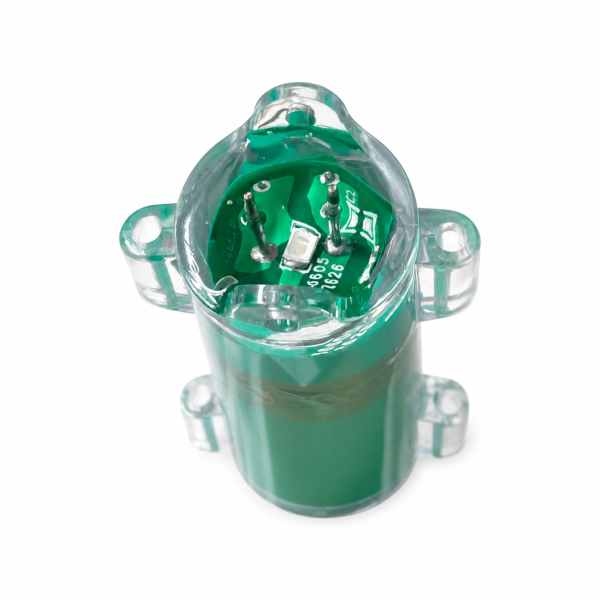

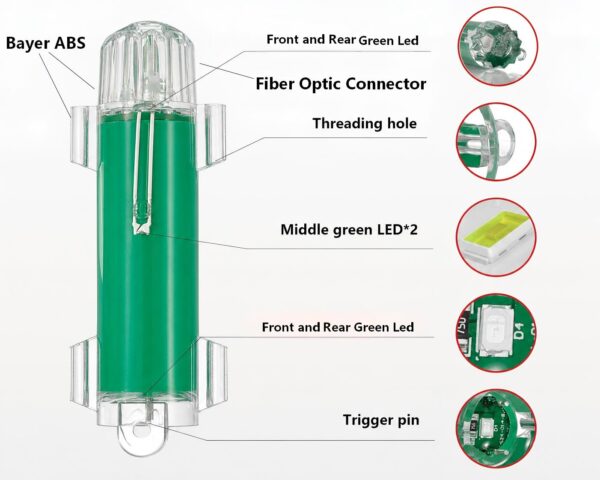

Four-LED 360° Light Distribution
The XC188 uses four LEDs:
- One LED at the top;
- One LED at the bottom;
- One LED on each side.
The multi-directional LED arrangement provides broad underwater visibility and helps the light remain visible even when the fishing line or rig changes direction.
The light is suitable for deep drop fishing rigs, longline fishing equipment, traps, pots and other marine fishing applications.
Water-Activated Operation

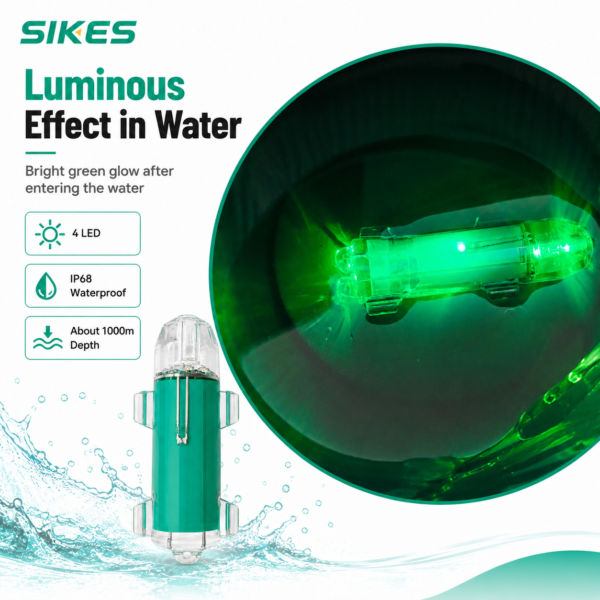

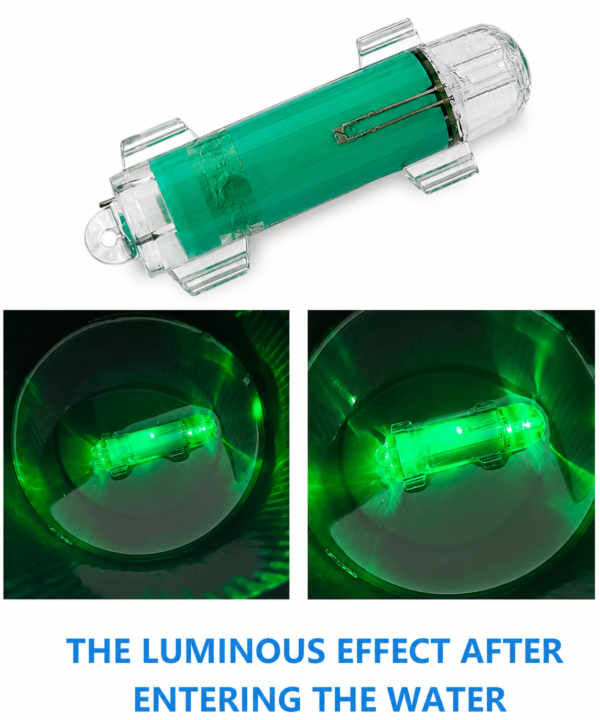

The underwater fishing light automatically switches on when it enters the water.
After the light is removed from the water and dried, it switches off automatically. The water-activated design reduces unnecessary power consumption and does not require a separate external switch.
Long Operating Time
The built-in 3.7V 3000mAh lithium battery supports extended fishing operations.
Typical operating times are:
- Solid mode: approximately 1,000hours;
- Strobe mode: approximately 4,000–5,000 hours.
Actual operating time may vary depending on LED color, operating mode, water temperature and product configuration.
IP68 Waterproof Housing
The transparent housing is manufactured from durable Bayer ABS material and sealed for underwater use.
The reinforced shell and waterproof sealing structure are designed to resist water pressure in deep-sea environments. The product has an IP68 waterproof rating and has passed customer testing at a depth of 1,000 meters.
Multiple Line Attachment Points
The housing includes multiple attachment holes and side locking structures to help secure the light to fishing lines and rigs.
The line holes are suitable for approximately 1.8–3.0 mm monofilament fishing line, depending on the installation method.
The multi-point attachment design helps reduce accidental loss, line twisting and unnecessary movement during deployment.
Compact and Lightweight Design

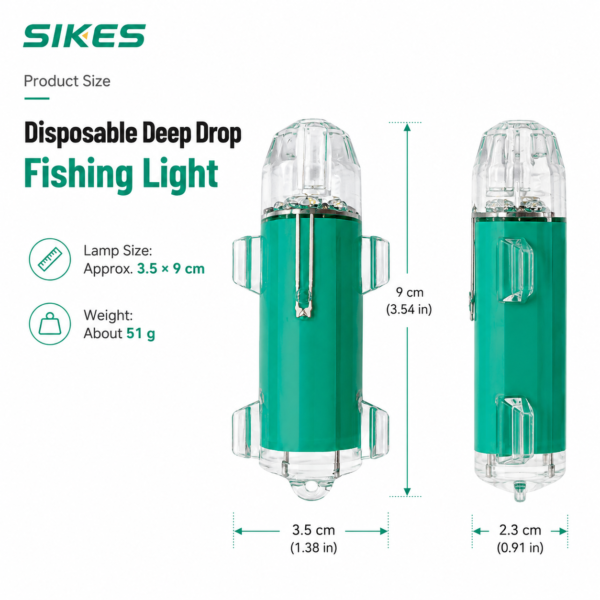

The XC188 measures approximately 3.5 × 9 cm and weighs about 51 g.
Its compact design helps reduce resistance during deployment and allows the fishing rig to descend efficiently into deeper water.

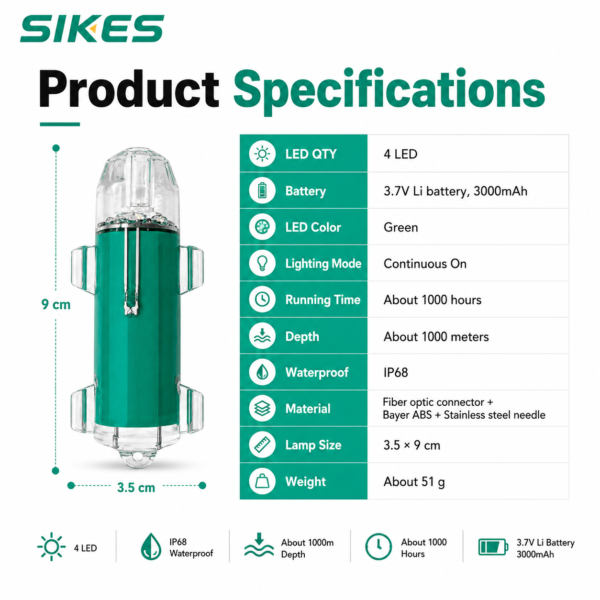

Product Specifications
| Specification | Details |
|---|---|
| Product Name | Disposable LED Underwater Fishing Light |
| Model | XC188 |
| Brand | SIKES |
| LED Quantity | 4 LEDs |
| LED Position | 1 top, 1 bottom and 1 on each side |
| Standard LED Color | Green |
| Custom LED Colors | Blue, Green, White, Red, Yellow and Disco/Multicolor |
| Battery | Built-in 3.7V disposable lithium battery |
| Battery Capacity | 3000mAh |
| Operating Modes | Continuous/Solid or Strobe, depending on configuration |
| Solid Mode Runtime | About 1,000 hours |
| Strobe Mode Runtime | About 4,000–5,000 hours |
| Activation | Automatically activates in water |
| Waterproof Rating | IP68 |
| Tested Depth | Customer-tested at 1,000 meters |
| Rated Depth Range | Approximately 1,000–1,500 meters, subject to configuration |
| Product Size | Approx. 3.5 × 9 cm |
| Weight | Approx. 51 g |
| Line Hole Size | Suitable for 1.8–3.0 mm monofilament line |
| Material | Fiber optic connector, Bayer ABS and stainless steel needle |
| Environment | Freshwater and saltwater |
| Custom MOQ | 1,000 pcs |
| Standard Packaging | OPP bag |
| Custom Packaging | Available |
| OEM/Private Label | Available |
Suitable Fishing Applications
The XC188 deep drop underwater fishing light can be used with:
- Deep drop fishing rigs;
- Commercial longline fishing;
- Squid fishing equipment;
- Crab and shrimp traps;
- Fishing pots and cages;
- Trolling and bottom fishing rigs;
- Offshore fishing equipment;
- Freshwater and saltwater fishing systems.
The green underwater light can be used when targeting or attracting marine life such as squid, shrimp, herring, bass, trout, redfish and other light-responsive species.
Fishing performance depends on water clarity, depth, species, season, current and installation method. The light should not be presented as guaranteeing a catch.
How to Use the Disposable Underwater Fishing Light
- Secure the light to the fishing line, longline, trap or rig using the attachment holes.
- Confirm that the line and connection points are properly secured.
- Place the light into the water.
- The LEDs will activate automatically after contact with water.
- Deploy the rig to the required fishing depth.
- After use, remove the light from the water and dry the contact area.
- The light will switch off after it is dry.
For best results, test the light in shallow water before deploying the complete fishing rig.
OEM and Wholesale Underwater Fishing Lights
SIKES supplies disposable underwater fishing lights to fishing tackle distributors, marine equipment importers, commercial fishing companies and private-label brands.
Available customization options include:
- LED color customization;
- Solid or strobe operating mode;
- Private-label branding;
- Custom OPP bags;
- Custom printed packaging;
- Barcode and label application;
- Bulk carton packaging;
- Product instruction cards.
The standard custom order quantity is approximately 1,000 pieces. Final MOQ may depend on LED color, packaging, logo and production requirements. (Less Quantity Please Send your Inquiry to Us for Further Confirming)
Wholesale Enquiries
Please provide the following information when requesting a quotation:
Required quantity:
LED color:
Solid or strobe mode:
Packaging requirement:
Logo requirement:
Destination country:
Required delivery date:
FAQ:
Is the XC188 an LED underwater fishing light?
Yes. The XC188 is a disposable LED underwater fishing light designed for deep drop, longline and commercial fishing applications.
How many LEDs does the XC188 have?
The XC188 has four LEDs: one at the top, one at the bottom and one on each side. This arrangement provides wide, multi-directional underwater visibility.
Does the fishing light turn on automatically in water?
Yes. The light is water activated. It automatically switches on after entering the water and switches off after it is removed and dried.
How long does the disposable underwater fishing light operate?
The solid-mode version operates for approximately 1,000–1,500 hours. The strobe version can operate for approximately 4,000–5,000 hours. Runtime varies according to operating mode, LED color and environmental conditions.
How deep can the XC188 underwater fishing light be used?
The XC188 has been customer-tested at a depth of 1,000 meters. The specified depth range is approximately 1,000–1,500 meters, depending on product configuration and operating conditions.
Is the XC188 suitable for saltwater?
Yes. The IP68 sealed housing is designed for both freshwater and saltwater fishing environments.
What LED colors are available?
Available colors include green, blue, white, red, yellow and disco or multicolor. Color availability may depend on order quantity.
Is the battery replaceable?
No. The XC188 uses a built-in disposable 3.7V lithium battery. The sealed design does not require the user to open the housing or replace the battery.
What fishing line size fits the attachment hole?
The attachment holes are designed for approximately 1.8–3.0 mm monofilament line. Compatibility should be confirmed before bulk production.
What is the wholesale MOQ?
The standard custom wholesale MOQ is approximately 500-1,000 pieces. MOQ may vary depending on LED color, logo and packaging requirements.
Can the packaging and logo be customized?
Yes. SIKES supports custom OPP bags, printed packaging, product labels, barcodes and private-label branding for qualified wholesale orders.
